TAIGA RM LYNX

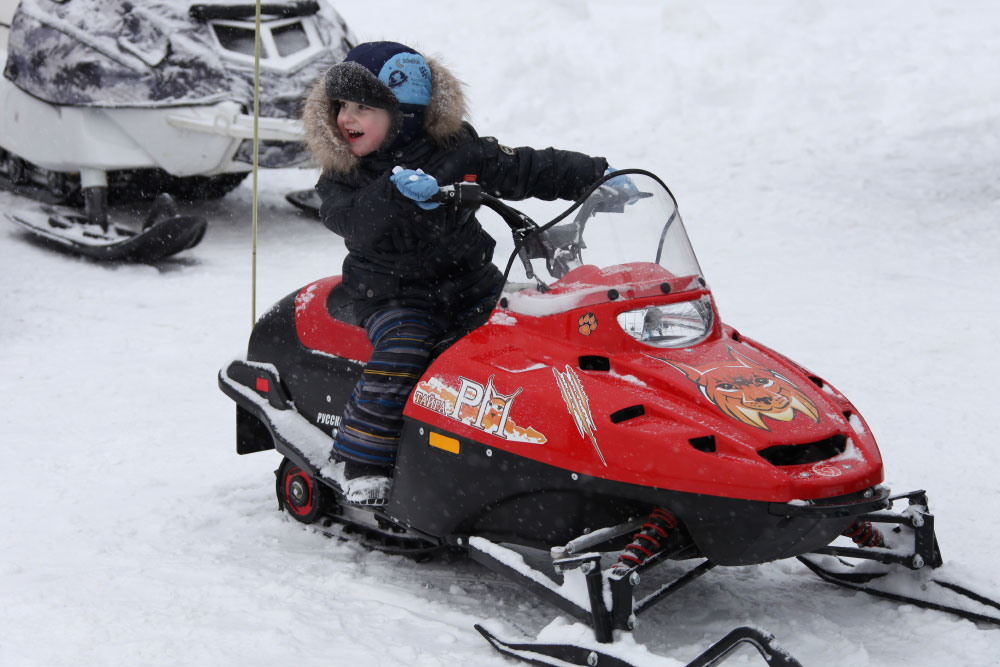

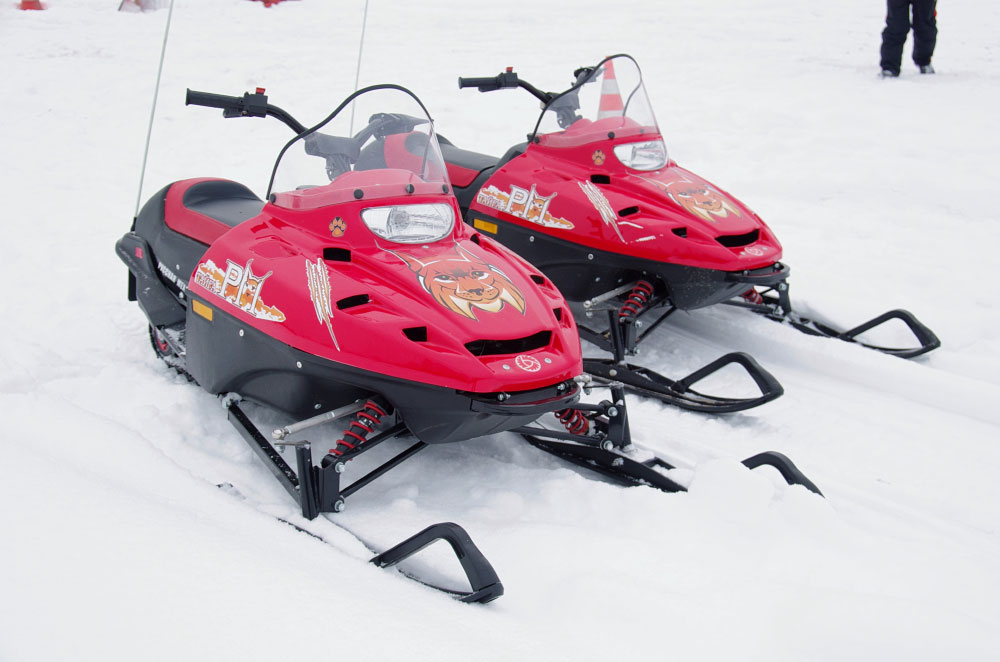

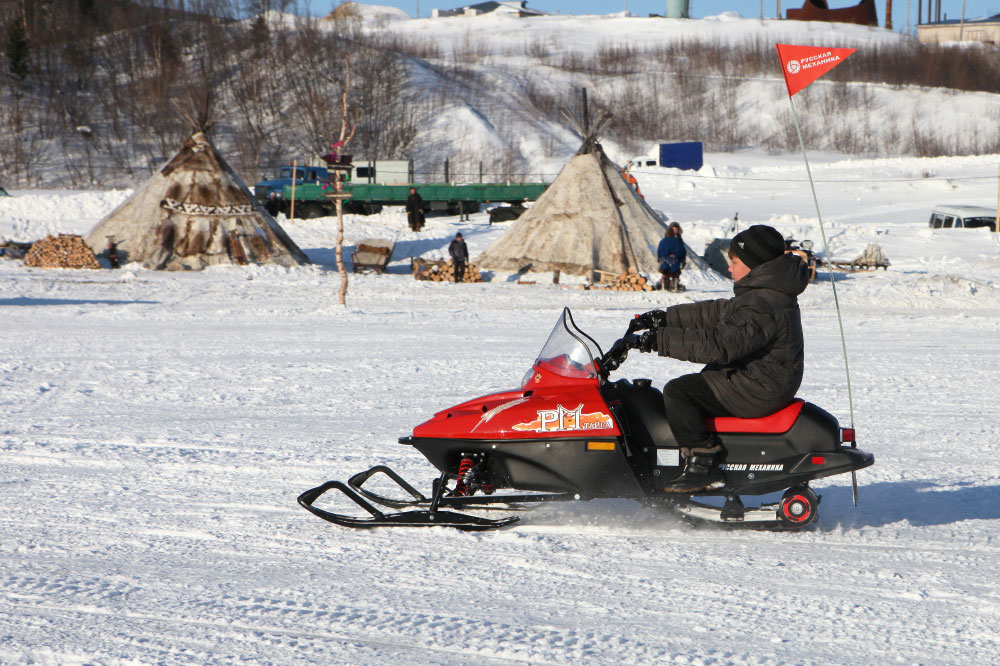

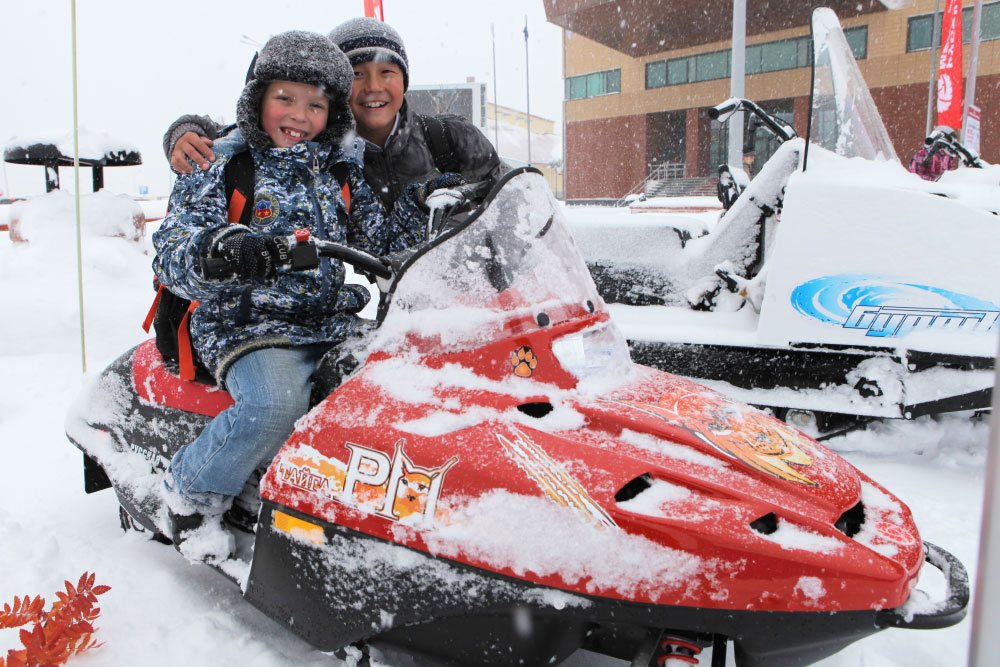

TAIGA RM RYS is the only children's snowmobile designed and manufactured in Russia.

Объём 196 cm3
Мощность 7 h.p
Скорость 13 km/h
from $0.00
Model description

The snowmobile has a single-cylinder Kohler engine with a volume of 196 cm3 with a power of 6.5 hp, a Composite track. We place high demands on the level of safety and quality of children's snowmobiles. Special attention is paid to safety measures: a safety ignition switch, an emergency engine stop button, and an electronic speed limiter are provided.

The snowmobile is as stable as possible. The center of gravity is low, and the width of the front lever suspension with skis is 880 mm-almost like a large snowmobile. Track width 257 mm, length 1728 mm. The long-stroke rear suspension with torsion springs is tuned for a comfortable ride.

Features

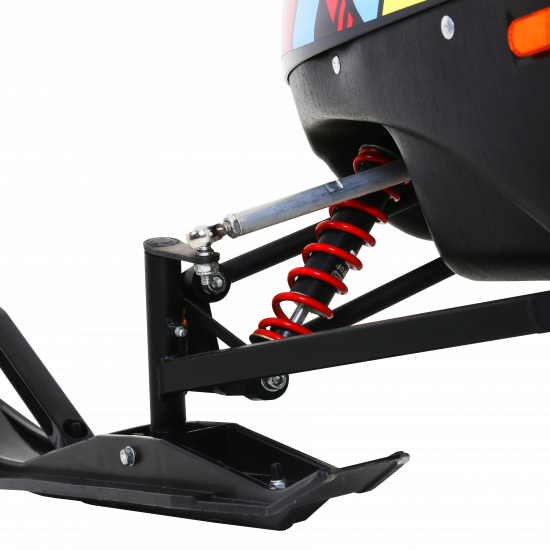

Lever suspension
Lever suspension

Lever front suspension

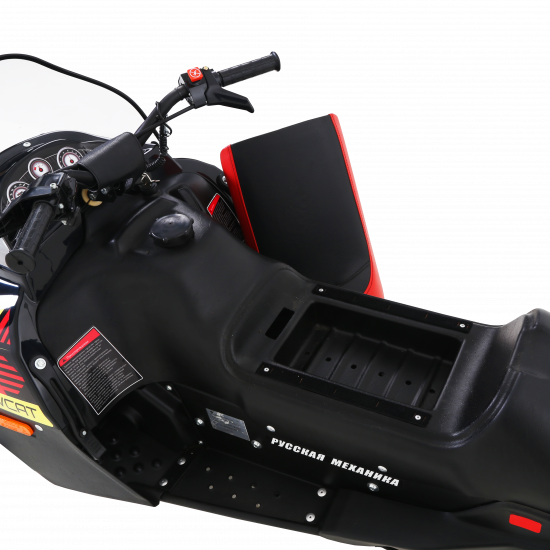

Seat with luggage compartment
Seat with luggage compartment

Removable seat with luggage compartment

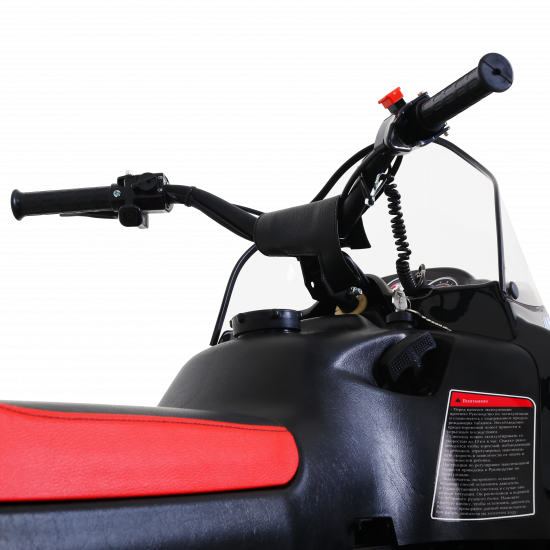

Motorcycle-type steering wheel
Motorcycle-type steering wheel

Motorcycle-style steering wheel, as in adult models

Назад
Вперед
Color selection
360
Technical specifications
Engine

Working volume, cm3

Cylinders

Power, hp

Type

Cylinder diameter × stroke, mm

Fuel system

Carburetor (type)

Cooling down

Release system

Intake system

Lubrication system

Maximum speed, km/h

Model

196 1 7 4-stroke 68х54 Carburetor - Air pressure Silencer Air Filter Grease in the crankcase, by spraying 13 Kohler
Chassis

Transmission

Brake mechanism

Chain drive with automatic clutch Mechanical, belt-driven
Electrical equipment

Launch system

Ignition switch

Electric starter

Reverse

Heated steering wheel handles and gas trigger

Headlight

Speedometer and odometer

Handle heater

Manual Contactless ignition No No No Halogen lamp 55/60 No No
Capacities

Oil tank capacity, L

Fuel tank, L

- 2
Suspension

Front suspension type

Front suspension travel, mm

Front suspension shock absorber

Front engine shock absorber

Rear suspension travel

Rear suspension travel, mm

Rear engine shock absorber

Ski track, mm

Track, L×W×H, mm

Lever arm 80 Hydropneumatic single-tube - Slide-guide 170 - 770 1728х257х17.5
Overall dimensions

Number of seats

Dimensions of the snowmobile, L×W×H, mm

Dry* weight, kg

1 2045х880х830 75
Guarantee

Warranty, month

12
